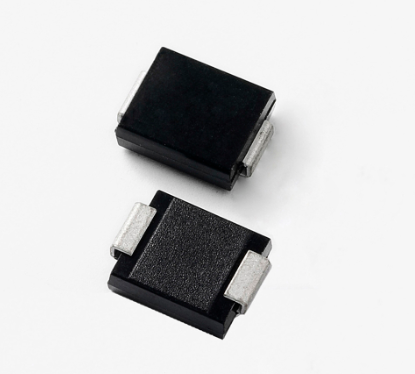

Littelfuse announced the launch of the Pxxx0S3G-A SIDACtor Protection Thyristor Series. This series marks a significant industry milestone as the first 2 kA thyristors available in a compact DO-214AB package. Designed to protect equipment in harsh environments from severe overvoltage transients, the Pxxx0S3G-A Series enables engineers to achieve greater product miniaturization while maintaining superior protection and compliance with regulatory standards.
ADVERTISEMENT
Key Features and Benefits
High Surge Protection in Compact Form Factor: The Pxxx0S3G-A Series offers 2 kA (8/20 µs) surge protection in a DO-214AB (SMC) package, the smallest available form factor capable of such high-power density.
High Surge Protection in Compact Form Factor: The Pxxx0S3G-A Series offers 2 kA (8/20 µs) surge protection in a DO-214AB (SMC) package, the smallest available form factor capable of such high-power density.
Enhanced Design Flexibility: Compared to traditional solutions requiring a larger TO-262 package, the DO-214AB's compact size allows for easier integration into space-constrained designs, including IoT devices, high-power density industrial equipment, and medical power supplies.
Reliability and Longevity: Unlike legacy solutions that degrade over time, the Pxxx0S3G-A Series sustains transients without degradation, ensuring long-term equipment protection and reducing maintenance costs.
Automotive Grade Compliance: The series fully complies with AEC-Q101 standards, making it ideal for automotive applications such as On-Board Charger protection, BEV/PHEV protection, and automotive battery charging systems.
The Pxxx0S3G-A Series is engineered to provide robust protection in a variety of demanding environments, including automotive and electric vehicle (EV) systems, where it protects OBC, BEV and PHEV battery charging systems, and EV wall chargers from high-energy surge events. In industrial and factory automation, it safeguards power supplies and high-power distribution grids in harsh operating conditions. For renewable energy systems, it ensures the reliability of solar system DC/AC inverters and energy storage systems that are exposed to fluctuating power surges. Additionally, in information and communication technology (ICT), it secures sensitive equipment in uninterruptible power supplies (UPS) and AC high-power distribution grids.
Legacy solutions often presented challenges due to their bulky design, which could degrade over time, reducing their protective efficacy. The Pxxx0S3G-A Series is more compact and offers a surge rating ideal for highly exposed applications. It has a clear advantage over the Pxxx0FNL 3kA SIDACtor series in the TO-262M package, requiring approximately 50% less PC board space. This new product represents a leap forward, being the first DO-214AB-sized product capable of handling a 2 kA (8/20) surge. Before this advancement, achieving such a level of protection would necessitate a much larger TO-262 package.
The Pxxx0S3G-A Series SIDACtor Protection Thyristors are available in tape-and-reel quantities of 3,000.
Learn more at Littelfuse.com
