Op Amp for current sensing and signal detection handle beyond R2R inputs
Date: 02/07/2023

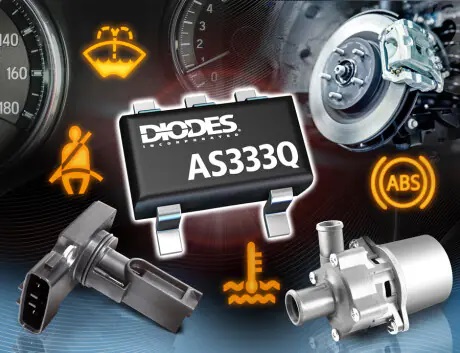

The new operational amplifier micro-power AS333Q, a single-channel version of the dual-channel AS2333Q from Diodes features input offset (VOS) stabilization for automotive signal conditioning applications.
The high-precision op amp is designed for current sensing and signal detection in a broad range of in-vehicle functions, including airbags, position sensors, vehicle occupant detection sensors, on-board chargers (OBC) and wireless chargers, and battery management systems (BMS).
Automotive designs are increasingly employing brushless DC (BLDC) motors and electronic control units (ECU) for advanced driver assistance systems (ADAS). These require precision op amps for accurate analog signal conditioning. The chopper-stabilized low input offset voltage (VOS = 8µV) and almost-zero temperature drift (0.02µV/°C) of the AS333Q enable it to maintain high accuracy across the full common-mode input voltage range.
In addition, the device’s ability to handle beyond-the-rail-to-rail common-mode inputs allows the AS333Q to support both supply and ground-referenced inputs. The extremely low 1.1µV/vHz low-frequency noise helps to improve signal-to-noise ratios (SNR), while a low quiescent current of 17µA (typical) means it can be used in equipment that must continue operating while a vehicle’s engine is off.
