Reliable crimp based connection replace manual splicing of wire-to-wire
Date: 19/06/2023

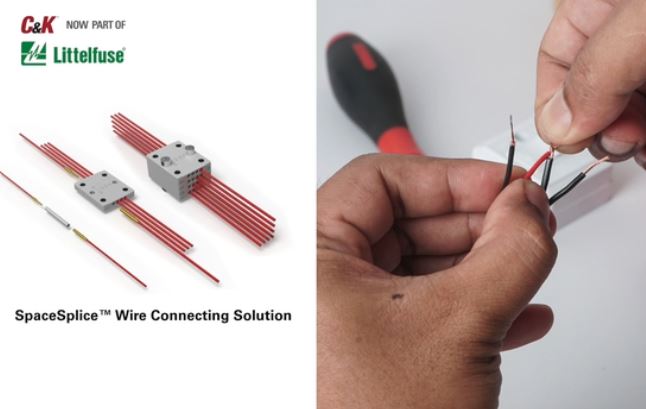

To ensure higher reliability in wire to wire connectivity, you can use new wire connecting solutions from Littelfuse owned C&K. This solution replaces manual splicing of wires for harsh environments such as aerospace and military grade electronic systems. The solution called SpaceSplice is easy-to-use and less labour consuming to connect wires in the AWG size of AWG 20 – AWG 30.
Touted as highly reliable solution, it employs connection of two wires using a C&K's D*MA crimpable and removable contact technology. Designed to meet the highest quality requirements, SpaceSplice is suggested for Military/ aerospace applications like satellites, Launchers and payloads, Heater, thermistor, and multilayer insulator (MLI) connections, and Other harsh environment applications, where connection reliability is extremely critical.
"The SpaceSplice connectors design provides a high-reliability solution that replaces manual splicing processes, offering a standardized alternative that is easy to use, reducing labor time and cost while increasing reliability," said Rémi Antoine, Global Product Manager at C&K Aerospace, now part of Littelfuse.
The SpaceSplice Series Wire Connecting Solution, with its unique design featuring removable crimp contacts, provides the following benefits:
Employs removable, D*MA crimpable contact technology
Allows for both manual and guiding-tool-assisted insertion
Accepts the most popular cable gauges (AWG 20 – AWG 30)
Provides high radiation and temperature resistance
Low residual magnetism and low degassing
Compliant with European Space Agency (ESA/ESCC 3401/097) specifications
The SpaceSplice Wire Connecting Solution is available in a one-way series that connects two wires with a standard solution and a four-way series that is a stackable wire-to-wire connector with removable contacts, which can be beneficial in space applications where more than four ways are required. View the video at https://www.ckswitches.com/video-center/posts/2023/may/spacesplice-wire-connecting-solution/
SpaceSplice is available and packaged for delivery in quantities of 50 for one-way and 20 for four-way configurations. Place sample requests through authorized Littelfuse distributors worldwide. For a listing of Littelfuse distributors, visit Littelfuse.com.
